1.How does the self-drilling and self-tapping function of Drill Tail Screws come about?

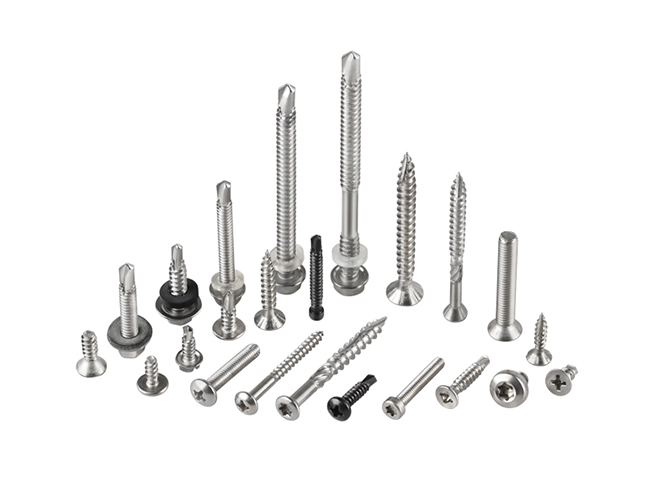

The self-drilling and self-tapping function of Drill Tail Screws relies on its unique structural design, especially the drill bit shape and the design of the threaded part of the tail. This type of screw can drill directly into the material without pre-drilling and form threads by itself, thereby achieving quick fixation. The tail of a drill tail screw is usually designed in the shape of a drill bit, which is similar in shape to a regular drill bit. The design of a drill bit includes two main parts: the drill tip and the drill blade. The drill tip is usually sharp and can quickly penetrate the surface of the material. The drill blade is responsible for continuing to expand the hole after the drill tip penetrates and clearing the material to form the starting hole for the thread.
The drill tip angle needs to be precisely designed to ensure that it can quickly and effectively penetrate a variety of materials such as metal, wood, and plastic. Common drill tip angles range from 118 degrees to 135 degrees. The shape and sharpness of the drill blade directly affect the efficiency and quality of drilling. It must be ensured that the drill blade can effectively cut the material and is not easily blunted during the drilling process. After the drill tip of the drill tail screw, there is its threaded part. The thread design must be able to form threads quickly and firmly after the drill penetrates the material.
The angle and pitch of the thread need to be optimized according to the specific application. For metal materials, smaller thread pitch and larger thread angle can provide higher fixing strength. For wood and plastic materials, larger thread pitch can better grip the material. Common thread shapes include triangle, trapezoid and sawtooth. Different thread shapes have different performance in different materials and need to be selected according to the specific application.
Drill Tail Screws are usually made of high-strength steel, stainless steel or galvanized steel to ensure its durability in high-strength and corrosive environments. The hardness of the material must be high enough to ensure that the drill bit is not easy to wear or deform during the drilling process. For drill tail screws that need to be used outdoors or in corrosive environments, surface treatment processes such as galvanizing, nickel plating or anti-corrosion coating are essential to improve their corrosion resistance.
The manufacturing process of Drill Tail Screws involves multiple steps such as cold forging, heat treatment and surface treatment, and each step needs to be strictly controlled to ensure product quality. The cold forging process is used to form the basic shape of the screw. It is necessary to ensure that the material is evenly distributed during the cold forging process to avoid stress concentration and fracture during use. Heat treatment processes such as quenching and tempering are used to improve the hardness and toughness of the screws. Heat treatment parameters such as temperature and time need to be precisely controlled to ensure that the screws have optimal mechanical properties. Surface treatment processes such as electroplating, spraying or dipping are used to improve the corrosion resistance and surface finish of the screws. It is necessary to ensure that the surface treatment is uniform and firm to avoid coating shedding and corrosion problems during use.
During the manufacturing process, strict quality control measures are essential to ensure that each batch of drill tail screws meets the design and performance requirements. The size and shape tolerances of drill tail screws must be strictly controlled to ensure that they can work stably in different materials. During the production process and before leaving the factory, a series of performance tests (such as drilling ability, pull-out resistance and corrosion resistance tests) are required to ensure that the product meets the expected use requirements.
2.What are the specific application cases of using Drill Tail Screws in construction projects?
In construction projects, Drill Tail Screws are widely used in various structural and assembly tasks due to their self-drilling and self-tapping characteristics and high-strength fixing ability. During the installation of metal roof panels, Drill Tail Screws are used to fix metal panels to steel or wooden structures. Due to their self-drilling and self-tapping functions, Drill Tail Screws can quickly penetrate metal roof panels and underlying structures without pre-drilling, greatly improving installation efficiency. Drill Tail Screws can complete drilling and fixing in one go, significantly shortening construction time and improving construction efficiency. After penetrating the metal roof panel, the screw forms a tight thread, providing strong pull-out resistance and fixing strength to ensure the stability and safety of the roof panel. Some Drill Tail Screws are equipped with rubber washers, which can effectively seal the screw holes, prevent rainwater leakage, and enhance the waterproof performance of the roof panel. However, in an environment with large temperature changes, the metal roof panel will expand and contract, which may cause the Drill Tail Screws to loosen or the screw holes to expand, affecting the fixing effect. Drill Tail Screws are mainly used for fixing metal materials, and may not be applicable to some special materials (such as high-hardness alloys).
In steel structure buildings, Drill Tail Screws are used to connect steel beams, steel columns and other steel components. Its self-drilling and self-tapping function makes it easier and more efficient to fix thicker steel. Drill Tail Screws form tight threads in steel structures, which can provide high-strength connections and ensure the stability and safety of the structure. No pre-drilling is required, which reduces the construction steps and time and improves the efficiency of steel structure assembly. Drill Tail Screws with galvanized or other anti-corrosion treatments can provide good corrosion resistance in harsh environments and extend the service life of the structure. However, in some ultra-high hardness steels, Drill Tail Screws may be difficult to penetrate effectively, requiring pre-drilling or the use of special screws. In connections with high precision requirements, it is necessary to ensure that the installation angle and depth of the Drill Tail Screws are accurate, otherwise it may affect the connection quality and structural stability.
Drill Tail Screws are used to fix various exterior wall decoration materials (such as aluminum panels, stone panels) to the base structure of the building's exterior wall. Its quick installation characteristics make exterior wall decoration projects more efficient. The self-drilling and self-tapping function simplifies the installation steps of the decorative panels, significantly improves construction efficiency, and shortens the construction period. Drill Tail Screws have a variety of head designs, and you can choose screws that match the color of the decorative panels to maintain the overall beauty of the exterior wall. Drill Tail Screws can form a tight fixation between the decorative panels and the base structure, provide a high-strength connection, and ensure the stability and safety of the decorative panels. However, for some special decorative materials, specially designed Drill Tail Screws may be required to ensure the best fixing effect.
